TONCONT Electric Electronic Door Lock 6pcs Computerized Doted Keys DC 12V Stainless Steel E-lock Support Wooden Glass Metal Door for Video Door Phone Doorbell Intercom Access Control

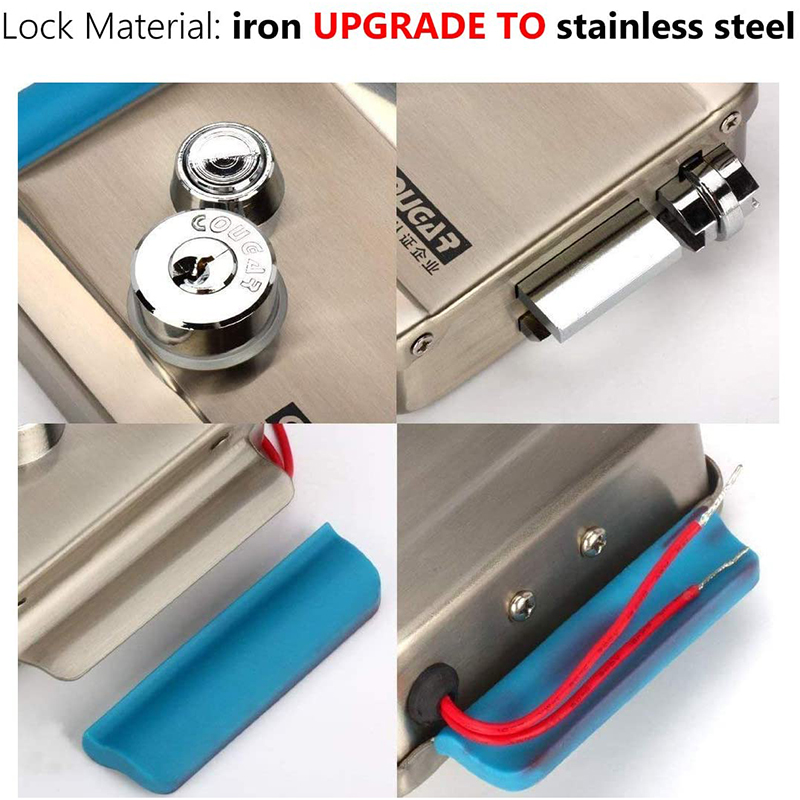

  • Upgrade 6pcs computerized doted keys, Lock material iron upgrade to stainless steel wire drawing processing, lock body surface anti-corrosion, durable and beautiful. It is highly secured and anti-theft.
  • Electronic Rim lock adopting the most advanced mechanical design, solid steel dead bolt & roller tongue, electric doorlock can suit both left and right hand door (by rotating the lock 180degree)
  • Electric Control Lock have double lock heads inside and outside, Fits electronically controlled, keys and push button unlock, electric release door lock via connect to our video intercom system, No need extra DC 12V power supply.
  • Doorlock made of stainless steel, uneasy to get scratched, uneasy to get rusty, long service life, non-conductive material, more than safe when using, power lock reliable locking mechanism (Up to 1000,000 tested)
  • Easy to install, able to be connected to Video intercom doorbell and other electric access control system. Suitable for fence gate, wooden, glass, metal and fireproof door.

Description

SPECIFICATIONS:

  • Can suit both Left and Right hand door (by rotating the lock 180°)
  • NO (open when powered) Fail Secure Operating Mode
  • Can work with all the video intercom system in my store unlocking mode
  • High-quality stainless steel
  • High anti-theft and high safety
  • Double lock heads inside and outside
  • With electronic-control unlocking unit and a spring adjusting balance unit
  • Easy to install,Uuser friendly, lever effect of the lock tongue, electronic anti-theft door
  • Support manual unlocking, 6 Computer Keys
  • Suitable for: home, offices, schools, hotels, factories, warehouses, etc

***”DC 12V power supply” are not included in this package***

TECHNICAL INFORMATION:

  • Voltage :DV 9 ~ 12V, 1.5A
  • Power : > 12W
  • Operating Mode : NO Mode(open when powered)

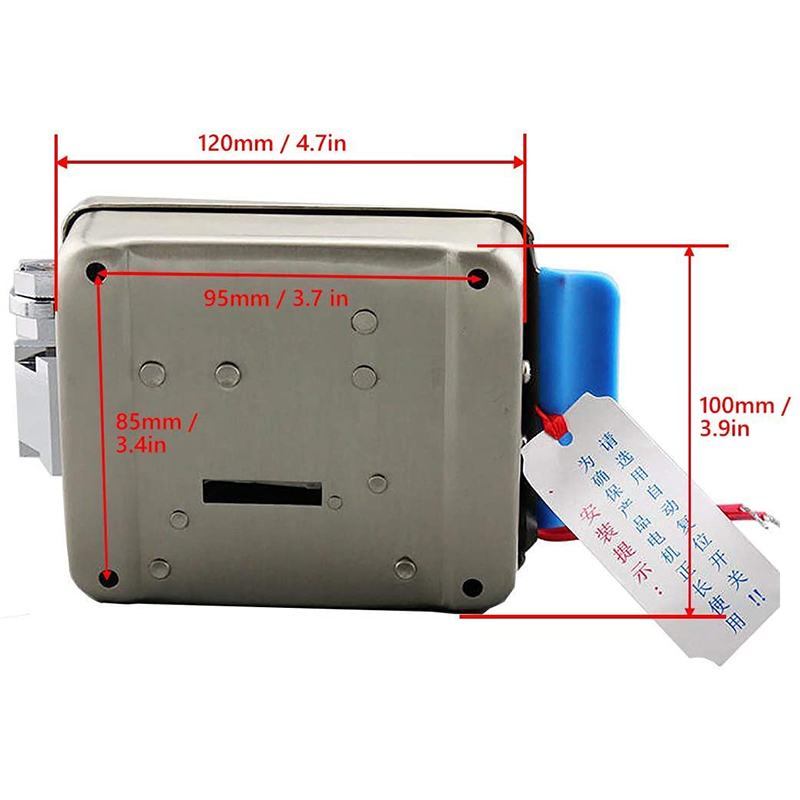

DIMENSIONS(STRIKE) :

  • Approx. 36 (W) x 102 (H) x 51 (D) mm
  • Approx. 1-3/8″ (W) x 4″ (H) x 2″ (D) inch

DIMENSIONS(MAIN BODY):

  • Approx. 123 (W) x 105 (H) x 35 (D) mm
  • Approx. 4-3/4″ (W) x 4-1/8″ (H) x 1-3/8″ (D) inch

Additional information

Weight 3.0 lbs
Dimensions 9.4 × 8.4 × 2.8 in
