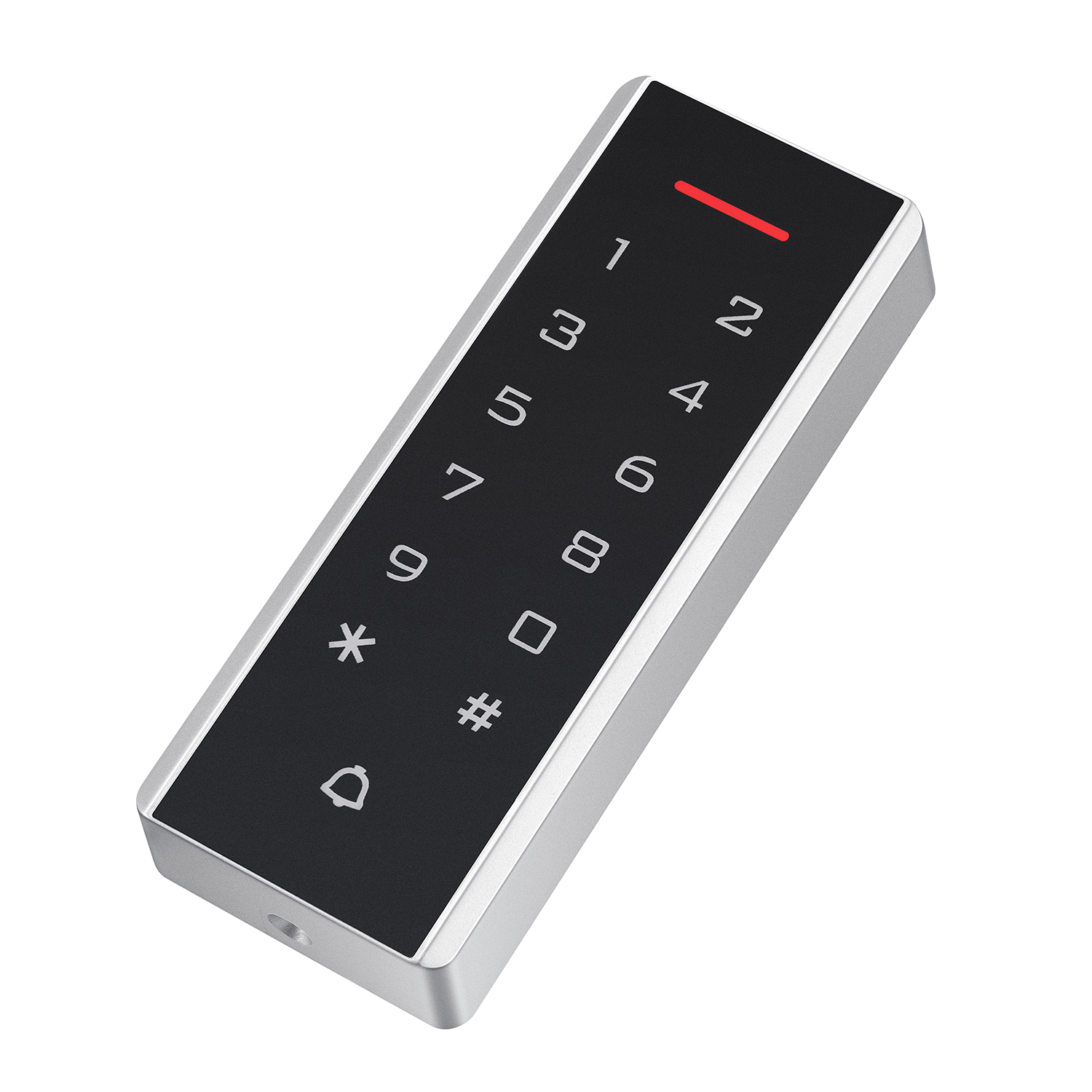

Door Access Control System, 125KHz Proximity RFID Card Access Control Keypad Support 1000 Users RFID Card Reader Digital Keypad + 5PCS Keychains for Entry Access Controller Gate Opener…

  • Multiple users, Multiple Access Ways — Supports up to 2000 users in either a Card, 4 digit password, or a Card + password option. Includes 5 PCS RFID keyfobs. can use the access control keypad to add and delete user card or password, provide more convenience for family, friends or trusted colleagues.
  • Simple Set-ups, Easy to Use — The access control keypad is single door multifunction standalone access controller, support Wiegand 26 input or output, can be as a standalone reader or keypad, full programming from the keypad, can drive the electric lock.
    Sturdy Rugged Duty and Vandal Proof — Strong zinc alloy electroplated anti-vandal case, The circuit board is completely encapsulated in epoxy to be weatherproof, IP68 waterproof, It is suitable for mounting either indoor or outdoor in harsh environments.
  • Light Indication Modes, Backlight Function — Gree, Yellow, Red light display different working status and built in buzzer reminder. When you touch the digital touch panel, blue backlight features keys, you can find and enter the password numbers even in dark locations or night.
  • High Security and Widely Used — Without the use of some computing intermediate, password will not be stolen. Suitable for apartment, office, access control, off-limit area, hotel locks, school campus access, identification, parking lot entry, etc. Deny exit to unauthorized personnel, property protection.


Access control keyfob with RFID keyfobs is a slim sized entry keypad used for access control, you can gain access through enter a pin code onto the keypad, use a proximity card, or use a pin code and proximity card.
This is a standalone system, which can add delete users more quickly. No need to operate through computer network, no monthly subscription fee, safe and fast.
With Wiegand 26 output and input, support 1000 users.


  • Black + silver interface with LED indicators with key feedback, Sensitively and response quickly.
  • Contactless RFID transponder technology, contactless transmission of data.
  • Open by multiple cards. Scan multiple valid user cards to open the door.

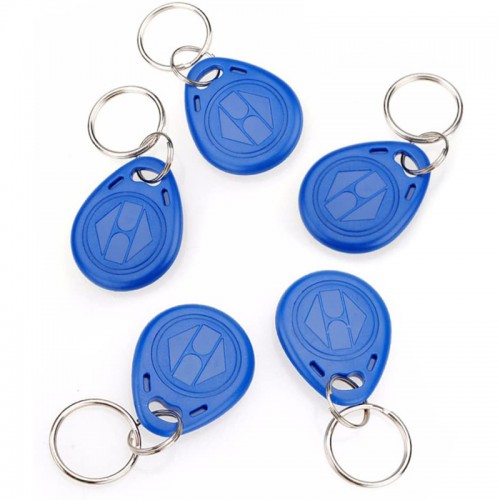

  • With 5pcs RFID Key Fobs, each card pre-programmed with a unique ID number, which is printed on the card.
  • Full programming from the keypad, can works alone, no need to connect on the computer.
  • With door bell button, Support external wired doorbell.

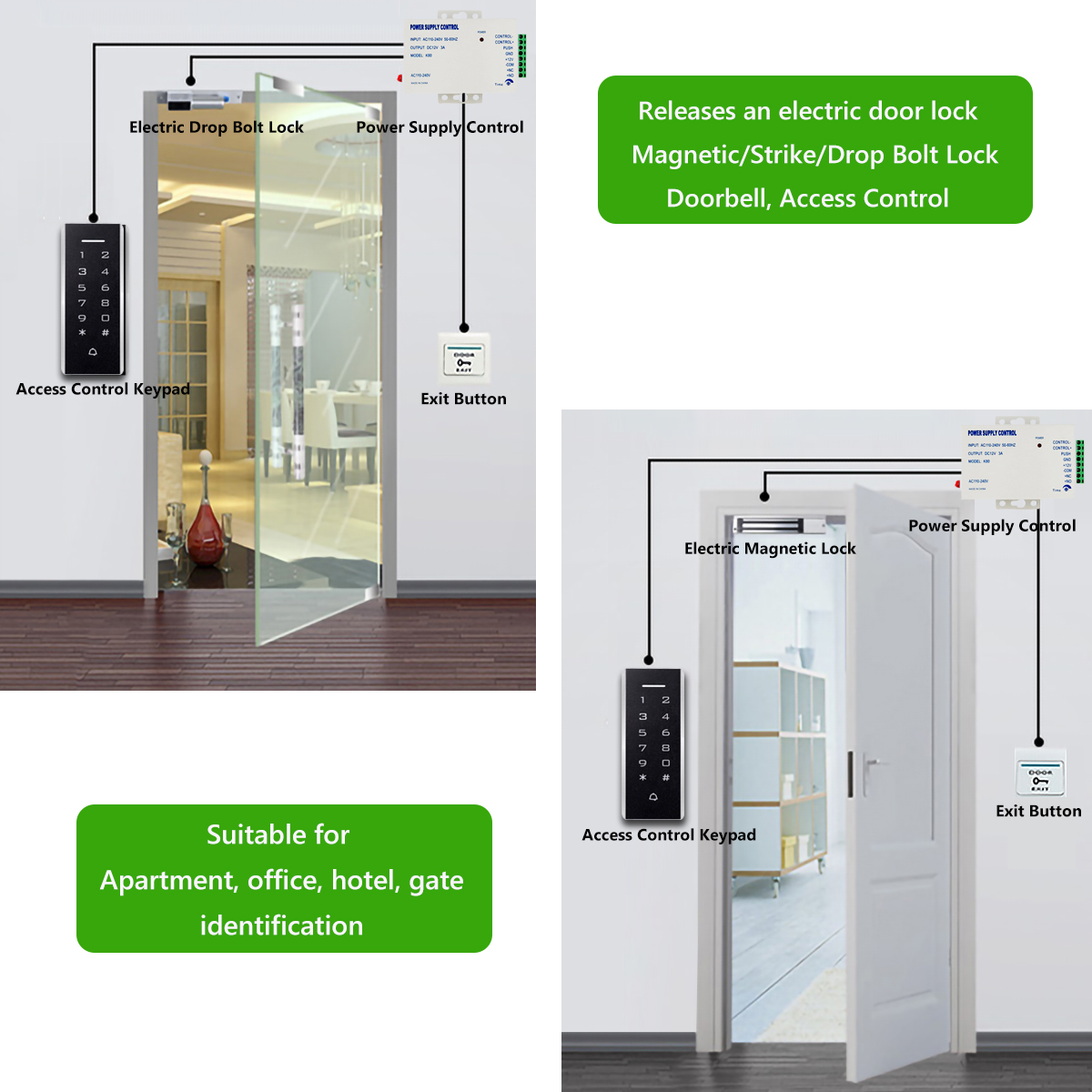

  • Application Home, Garage, Office, or Gate Use.

Important Notice: Compatible EM standard card (Can’t support some encrypted cards,such as HID, Cobra, APCiK, etc)


  • User capacity:1000 users
  • Card Reading Distance:1~15mm

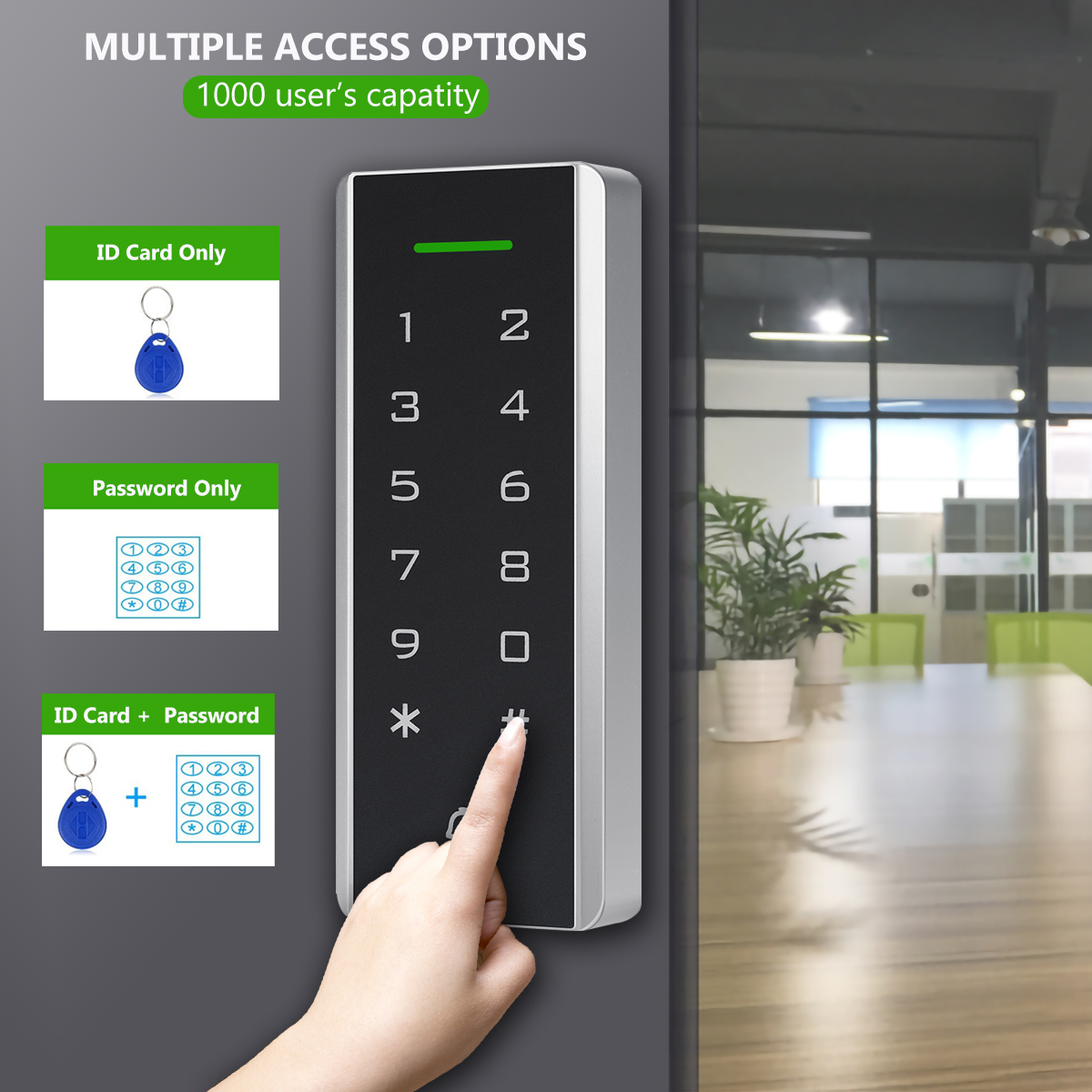

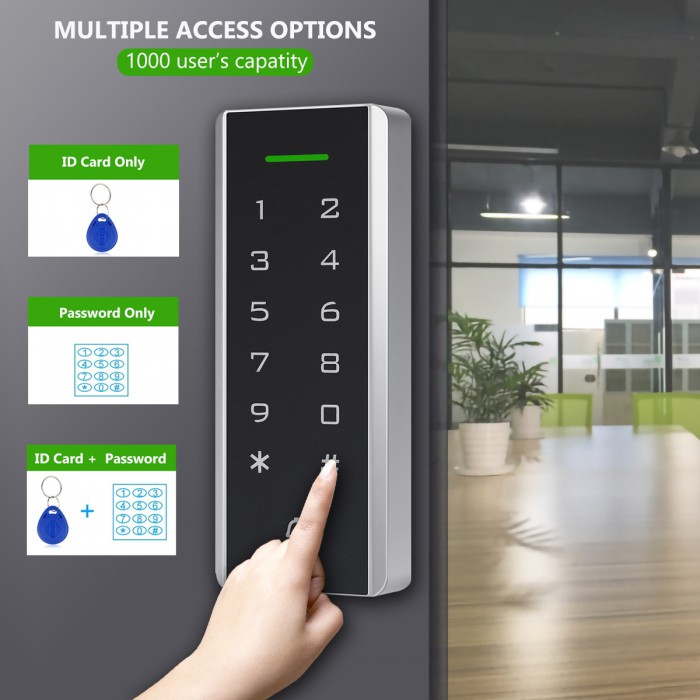

  • Open Mode: ID Card or Access Password or Card + Password
  • Identification frequency: ID (EM) type: 125KHz
  • Material: ABS
  • Work Voltage:DC 12V
  • Standby Current: ≤30mA
  • Lock Output Load: ≤3A
  • Door Relay Time: 0 ~ 99s (adjustable)
  • Temperature: -40℃~60℃
  • Weight: Approx. 60g/0.13lb

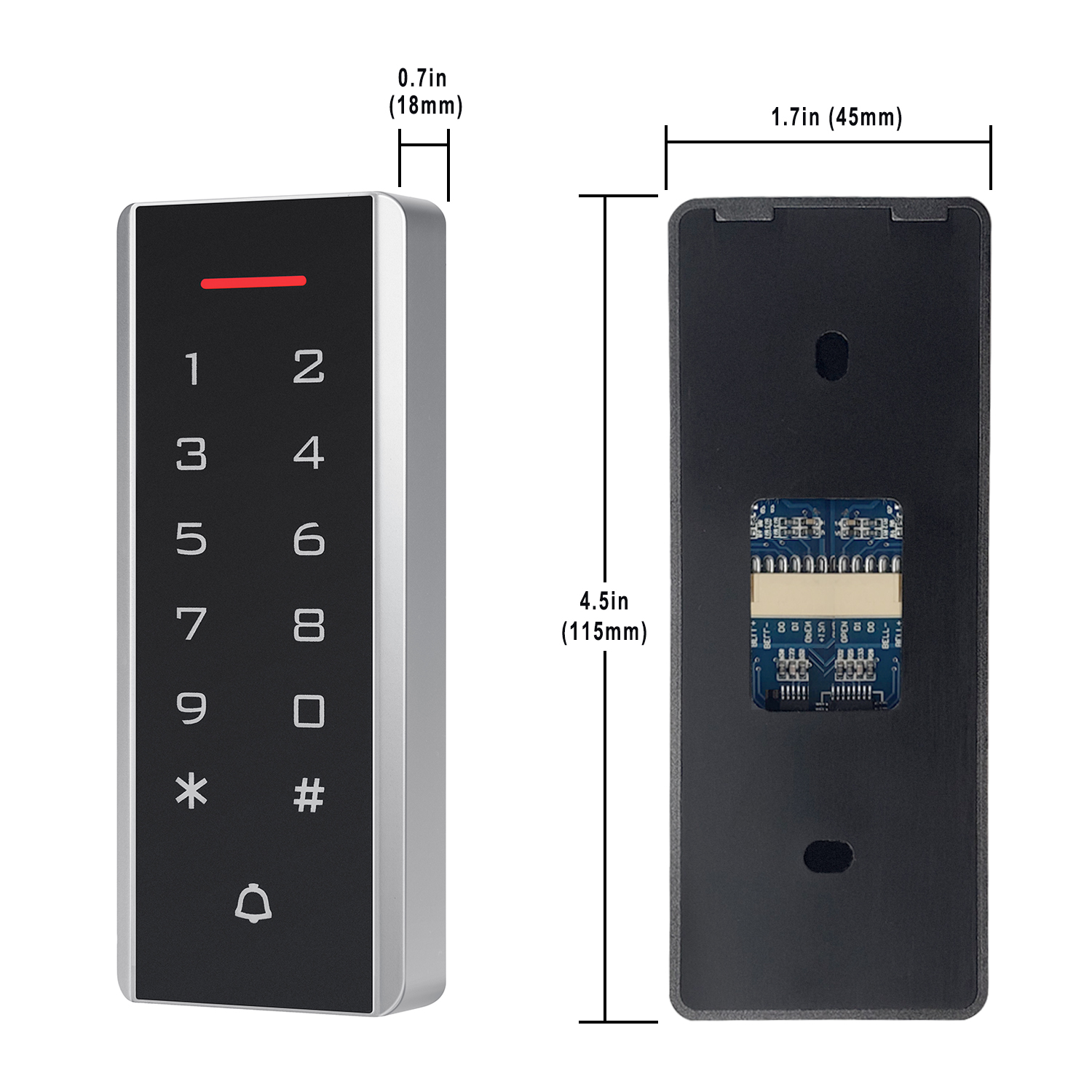

  • Dimensions: Approx. 4.5×1.7×0.7 in(LxWxH)

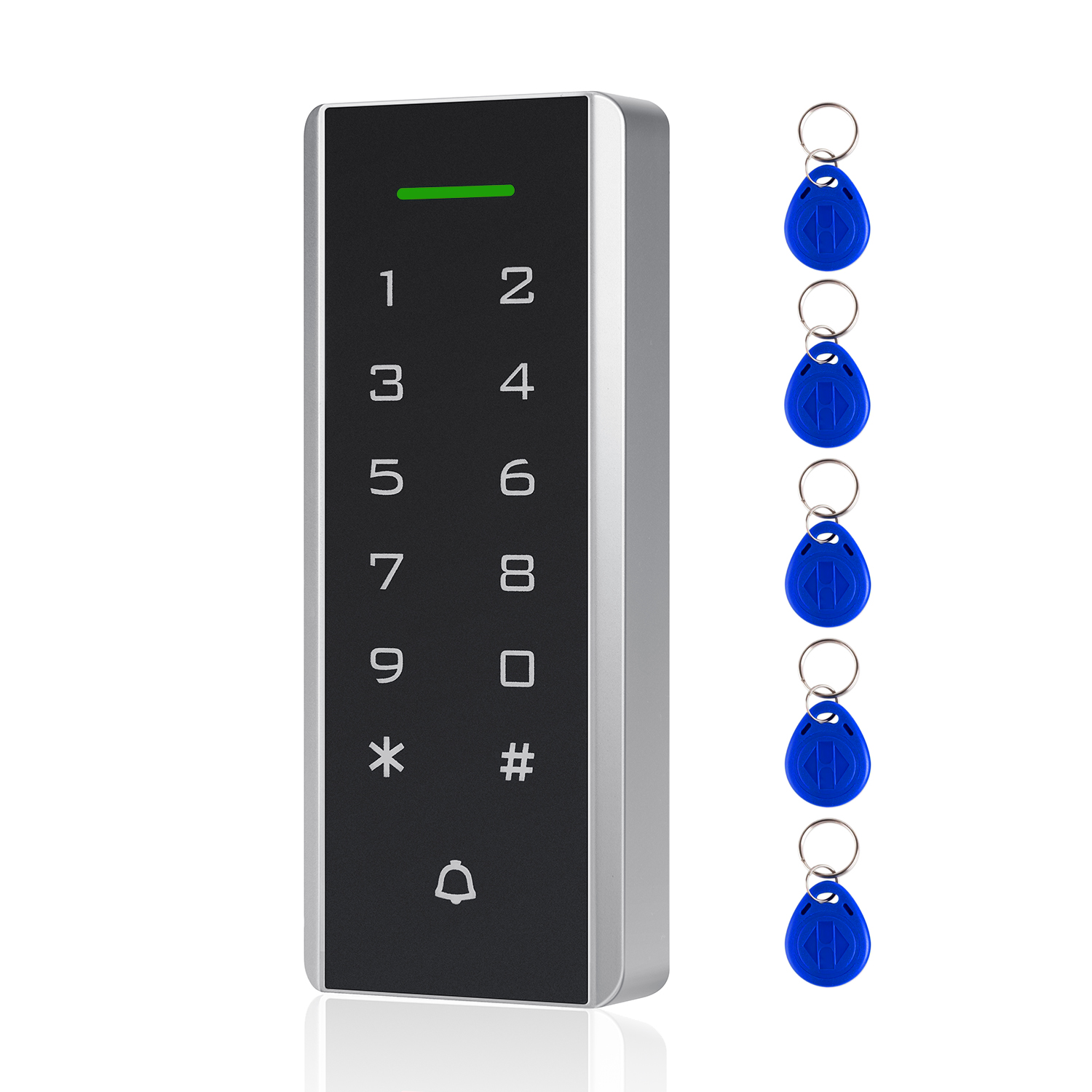

Package List:
1 x Access Control
5 x Keyfobs
1 x Installation Accessories Bag 1 x User Manual(English)

Additional information

Weight 15.8 lbs
Dimensions 4.5 × 2.9 × 0.8 in
