Toncont Door Access Control System, Stand Alone Password Door Keypad + 5PCS RFID Keychains, Support 2000 Users, Wiegand 26 PIN Code RFID Keypad, IP68 Waterproof, Backlight, Zinc Alloy Metal Case

  • Multiple users, Multiple Access Ways: Come with 5PCS RFID key fobs, Support 2000 user capacity, support open the door for RFID key cards, password, RFID key card+password options. Add delete users quickly, usable keyboard delete card number, humanized tamper alarm function.
  •  Heavy-Duty Zinc Alloy Case: The access control keypad with strong zinc alloy wlectroplated anti-vandal and weatherproof. Anti explosion and pry. Epoxy to completely encapsulated, allowing long-term use in rain and sunlight. Durable to use.
  •  Simple Setup and Easy Installation: The access control is multifunction standalone access controller, full programming from the keypad, don’t need to connect to computer. Built-in high-grade microprocessors, strong anti-interference ability. Can set the door delay time, change the password.
  •  Bright Backlight Keypad: Access control keypad with blue backlight features keys, you can easy see the keypad numbers and enter the password correctly even at night or in the dark outside the office. With WG26 input/output, can connect to a extra card reader.
  •  High Security and Widely Used: Access control system able to deterring unauthorized personnel. Suitable for mounting either indoor or outdoor. Suitable for apartment, office, access control, off-limit area, hotel locks, school campus access, identification, parking lot entry, etc.


Access control system with RFID keyfobs suitable for mounting either indoor or outdoor in harsh environments. You can gain access through enter a pin code onto the keypad, use a proximity card, or use a pin code and proximity card.
Single door multifunction standalone access controller or a Wiegand output keypad card reader.


  • Strong zinc alloy electroplated anti-vandal case,IP68 waterproof, with LED indicators with key feedback, Sensitively and response quickly.

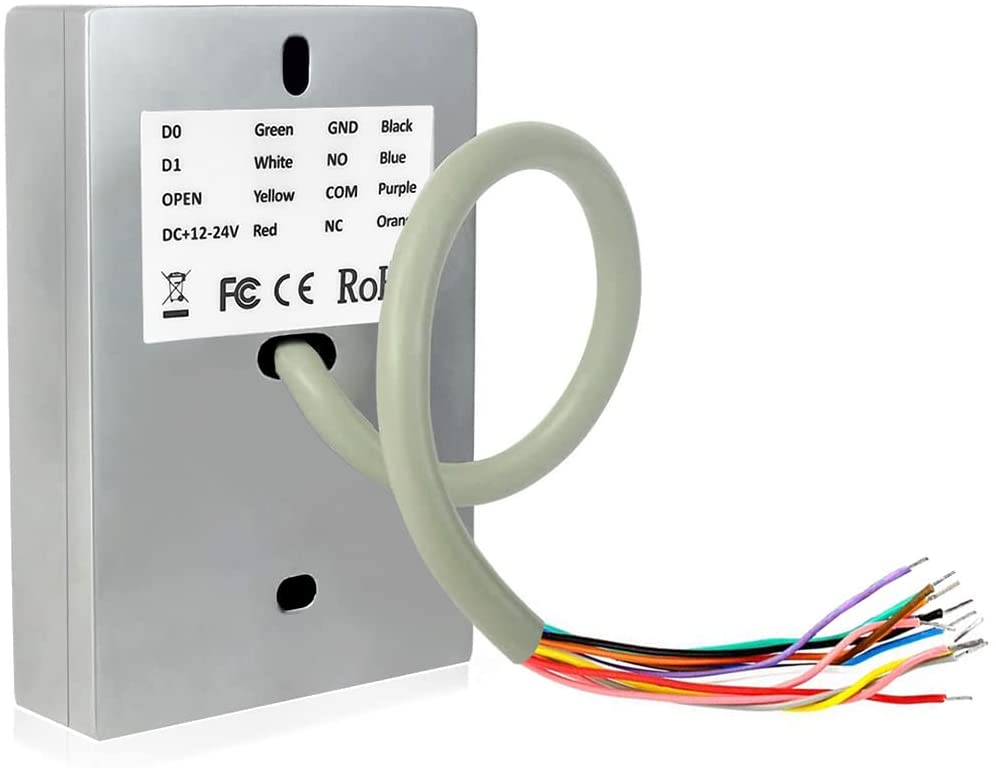

  • Wiegand output: Wiegand output interface, Wg26 or Wg34 output

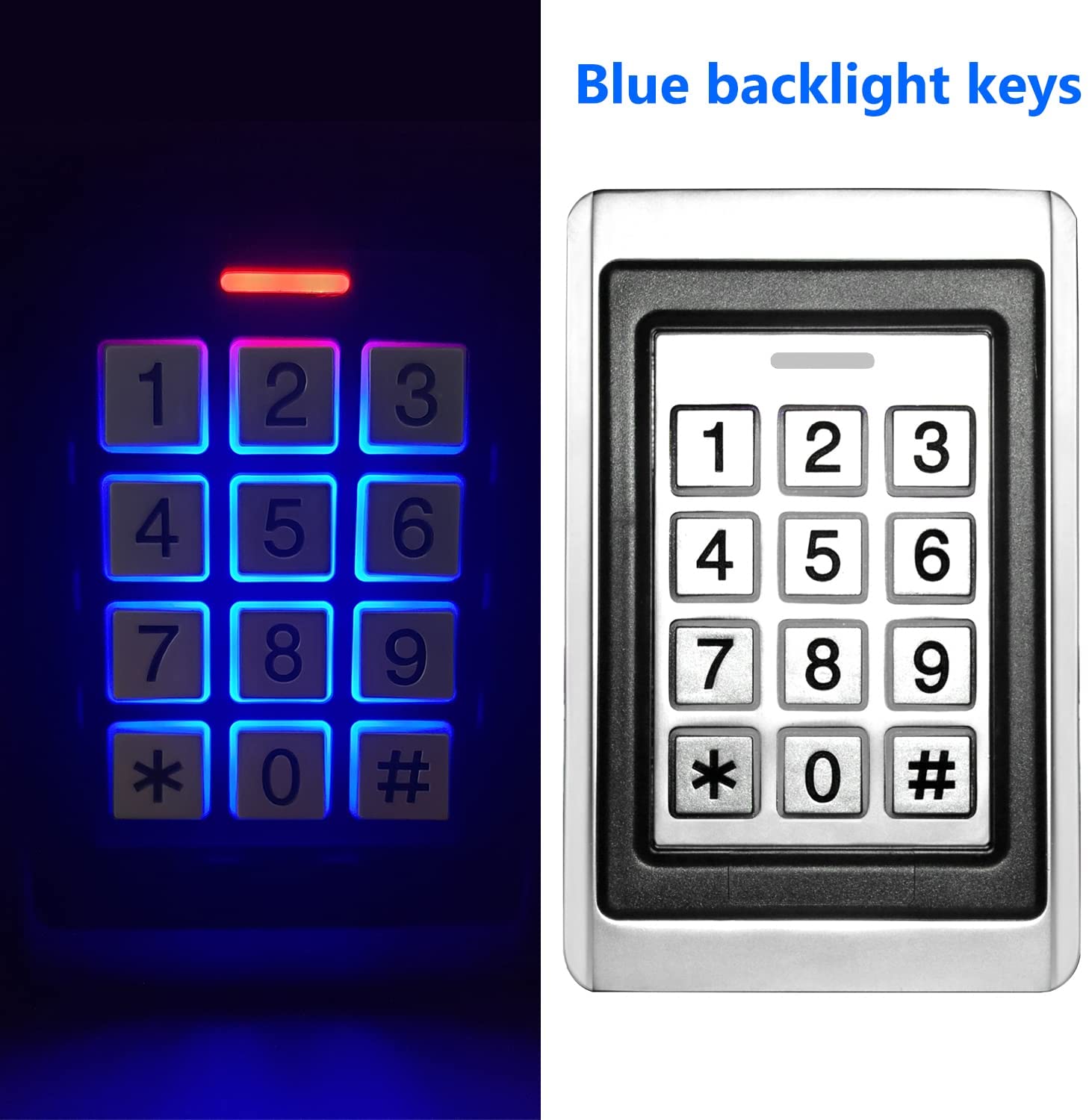

  • Backlit keypad: the night can also operate keyboard.
  • Full programming from the keypad, can works alone, no need to connect on the computer.
  • User modification password: Users can revise the door password.

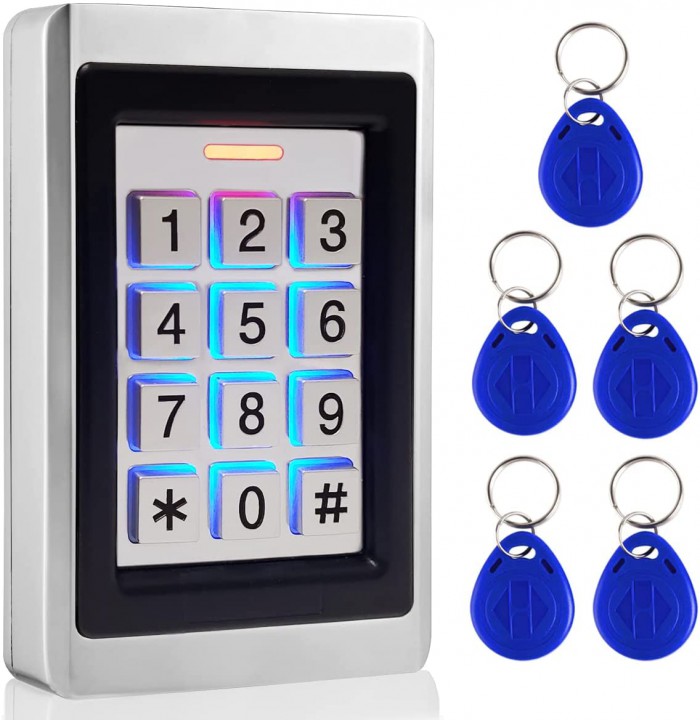

  • Including 5pcs RFID Key Fobs, each card pre-programmed with a unique ID number, which is printed on the card.
  • Application Home, Garage, Office, or Gate Use.

Important Notice: Compatible EM standard card (Can’t support some encrypted cards,such as HID, Cobra, APCiK, etc)


  • User capacity:2000 users
  • Card Reading Distance: 2-10mm / 0.08-0.39in
  • Open Mode: ID Card or Access Password or Card + Password
  • Identification frequency: ID (EM) type: 125KHz
  • Material: Strong zinc alloy electroplated case
  • Work Voltage:DC 12V
  • Standby Current: ≤30mA
  • Lock Output Load: ≤3A
  • Door Relay Time: 0 ~ 99s (adjustable)
  • Temperature: -25℃~60℃
  • Weight: Approx. 500g/1.1lb

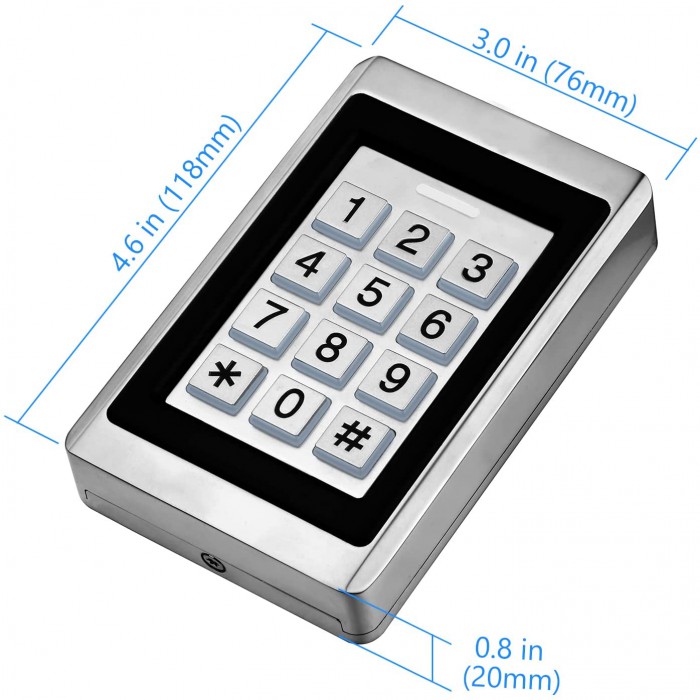

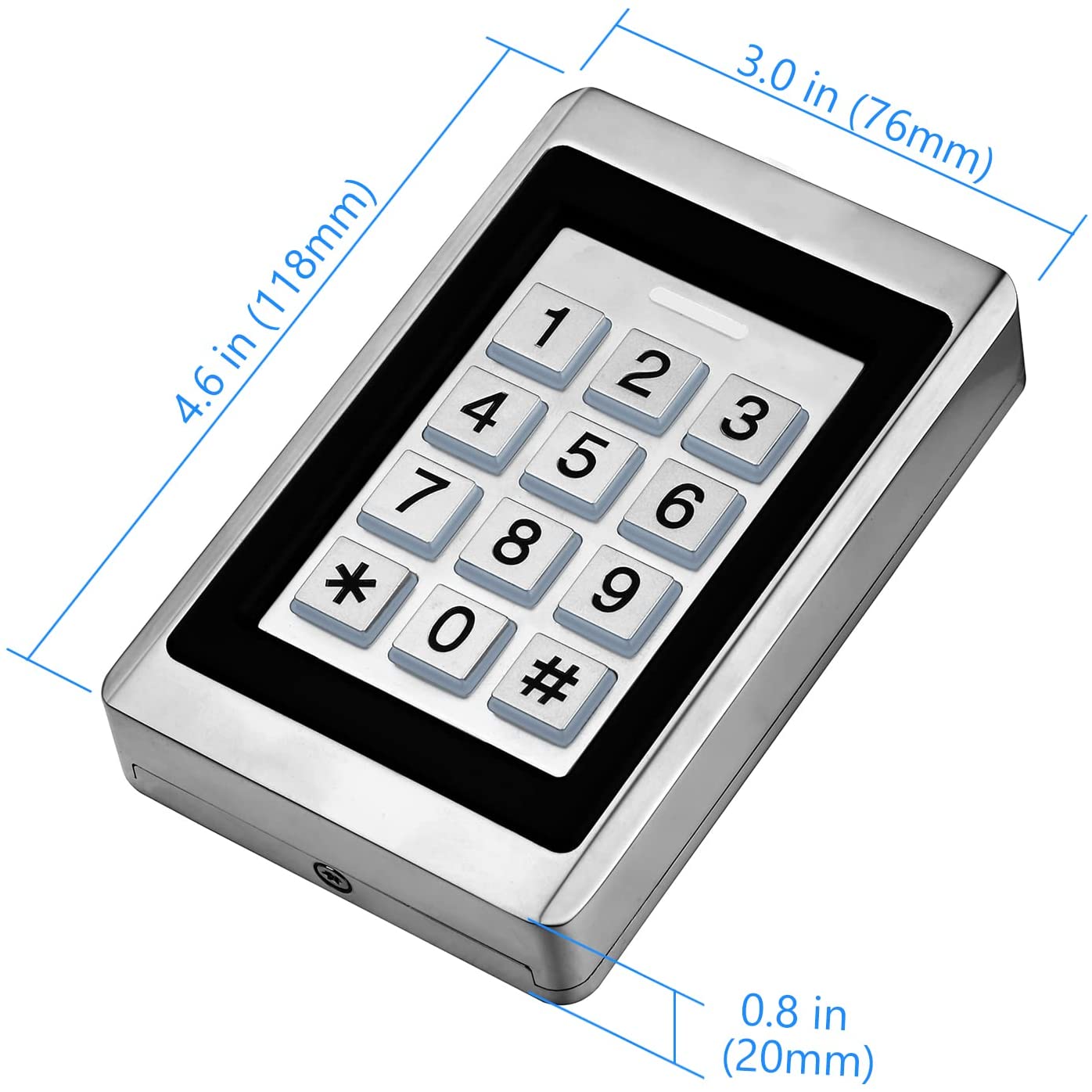

  • Dimension: 118 x 76 x 20mm / 4.6″ x 3.0″ x 0.8″

Package List:
1 x Access Control
5 x Keyfobs
1 x Installation Accessories Bag
1 x User Manual(English)

Additional information

Weight 15.8 lbs
Dimensions 4.5 × 2.9 × 0.8 in
